Pneumatic Tube Supports: Stud Mount (SLP)

In shipbuilding, offshore platform, and steel fabrication projects, maintaining pneumatic tubing is essential to the work at hand. Production Fastening System’s introduced the pneumatic tube supports in 1991 to offer easy-to-install, corrosion-resistant stud mount pneumatic tube supports to ensure that your tubing systems are protected at all times.

Our SLP tapped tube supports fasten to 3/8-16 studs and can support pneumatic tubing sized 1/4 in. through 3/4 in. PFS’s SLP-type stud mount pneumatic tube supports are manufactured from grade 316 stainless steel, and are used with standard line clamps, resulting in a durable, convenient tube support method.

Along with the other options we make available to our customers, our slotted cable hangers-both ESL-type (for electrical) and SLP-type (for pneumatic tubes)-as well as our crimp-type tapped cable hangers are now available with M-10 tapped metric studs. This means that, in addition to other studs, cable hangers can now be fastened to M-10 male threaded studs.

PFS’s stud mount pneumatic tube supports are:

  • Quick and simple to install (supports fasten easily onto welded studs)
  • Made of corrosion-resistant grade 316 stainless steel (other alloys also available)
  • Adjustable (to allow increase or decrease in number of tubing runs)
  • Mounted to 3/8 in. diameter studs (to allow for standardization of electrical and pneumatic weld stud supports)
  • Designed to prevent rust from accumulating (the studs allow for the tubing to stand off the base material to prevent corrosion)

To view specifications and diagrams for PFS’s stud mount pneumatic tube supports, scroll down; or, to view a picture of our stud mount supports in action, click on the “See it in Action” button to the lower right.

*When ordering pneumatic tube supports from PFS, please specify metric by placing an “M” after part number of cable hanger request (Example: P15002-ESL2 M).

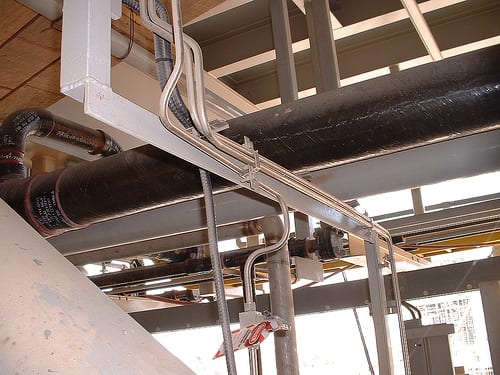

See SLP-4 SS316 pneumatic tube support with 3/8-16 x 1-1/2 SS316 weld studs, TS-3/8 SS316 tube spacer, and 3/8 SS316 line clamp Alternate Applications for Pneumatic Tube Supports Detailed Specifications for Pneumatic Tube Supports
Prod Id Turning Radius Alloy Max No Of Tubing 1/4 Max No Of Tubing 3/8 Weight per 100 pcs
SLP-2 1 7/8″ SS-316 or Zinc 2 1 9 lbs
SLP-3 2″ SS-316 or Zinc 4 3 13 lbs
SLP-4 2 1/2″ SS-316 or Zinc 8 5 16 lbs
SLP-6 3 3/4″ SS-316 or Zinc 12 8 22 lbs
SLP-8 5″ SS-316 or Zinc 12+ 12 28 lbs

Max Tube Line Clip Chart

Tube Charts

SLP-Mounted T-SEP Assembly

SLP-Mounted T-SEP Assembly

All above elements are included with the assembly

See Generic T-SEP/SLP Configurations:

SLP-2SLP-2: T-SEP/SLP ConfigurationsSLP-3SLP-3: T-SEP/SLP Configurations

SLP-4SLP-4: T-SEP/SLP ConfigurationsSLP-6SLP-6: T-SEP/SLP ConfigurationsSLP-8SLP-8: T-SEP/SLP Configurations

SLP SUPPORTING CHANNEL TRAY

Tsep supporting ytay

SLP SUPPORTING THE T-SEP ASSEMBLY

Supporting T sep assembly

Complete tray mounting system in collaboration with the T-SEP Assembly™ (for 2″, 3″, and 4″ Channel Tray) Tray mounting collaboration with T Sep

. . . . . . . . .
